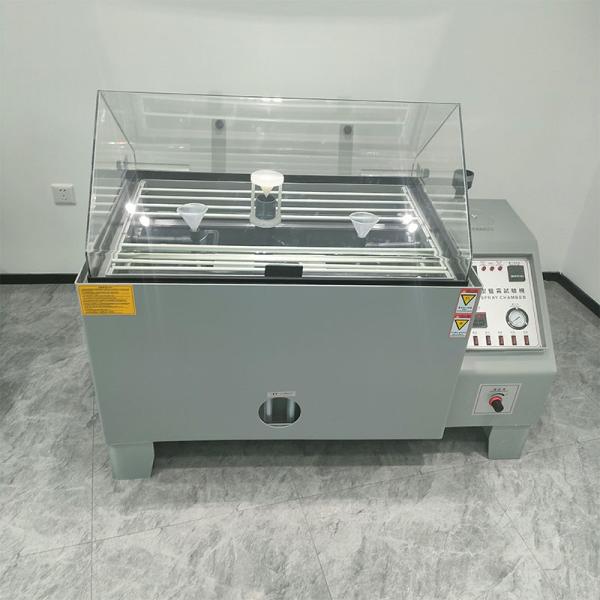

Salt Dry and Wet Cycle Corrosion Salt Spray Test Machine Compound Salt Spray Test Chamber

Brand Name : YUYANG

Model Number : YY60

Certification : CE,ISO: 3768, 3769, 3770; ASTM: 8117

Place of Origin : China

MOQ : 1 set

Price : $655

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 15-20 work days

Packaging Details : Plywood Case

Model : YY60

Test Chamber : 600*450*400mm (W*D*H）mm

Outside box size : 1070*600*1180mm (W*D*H）mm

Power : 220V

Supply : single phase:2KW 50HZ

Standard : ISO 9227、ASTM B-117

Saline spray test : NSS(neutral)

Test room : 35℃±1℃ 47℃±1℃

Pressure air barrel : CASS（copper acetate）

Corrosion resistance test : 50℃±1℃ 63℃±1℃

Contact Now

Salt Dry and Wet Cycle Corrosion Salt Spray Test Machine
Salt Dry and Wet Cycle Corrosion Salt Spray Test Machine Compound Salt Spray Test Chamber
Product Overview
This compound salt spray test chamber is designed for evaluating the corrosion resistance of various materials after surface treatments including paint, electroplating, organic and inorganic coatings, anode processing, and anti-rust oil applications.
Application Scope
The saltwater spray testing machine assesses corrosion resistance for multiple material surface treatments, helping establish product quality standards through reliable testing methodologies.
Design Standards Compliance
  • CNS: 3627, 3385, 4159, 7669, 8886
  • JIS: D0201, H8502, H8610, K5400, Z2371
  • ISO: 3768, 3769, 3770
  • ASTM: 8117, B268
Testing Purpose
This salt spray test machine performs corrosive testing on protective layers for components, parts, electronic and electrical components, metal materials, and various industrial products.
Chamber Structure Features
  • Transparent chamber cover for direct observation of test samples and spray conditions
  • Waterproof structure between cover and body prevents salt spray overflow
  • Tower spraying system with salt solution filtration and non-crystal nozzles for uniform distribution
Technical Specifications
Construction Material Durable hard PVC
Corrosion Resistance Anti-corrosion design
Operation Easy clean & operate
Warranty 1 year warranty
Key Operational Features
  • Low loading threshold for ergonomic loading and unloading
  • "Easy Open" pneumatically operated canopy with safety interlock
  • Dry seal gasket prevents operator clothing from getting wet
  • Timed canopy lock and automatic purge system
  • Accessible salt spray atomizers in transparent acrylic for maintenance
  • External portable salt solution tank for easy cleaning
  • Central viewing window for unobstructed visual access
  • Base castors and integrated forklift runners for transportation
  • Customizable canopy color options
  • Includes calibration certificate and consumables spares kit
  • Fallout measuring kit included
